HORIZON PN 4000

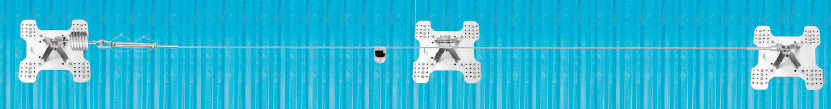

Roof Mounted
Horizon PN 4000 (Horizontal Anchorage Lifeline System) provides permanent anchorage to a user who has to constantly move along an elevated horizontal track. It comprises of a Stainless Steel Wire Rope (grade 316) of 8mm diameter running all along the horizontal track, and is installed at the ends using special End Extremity Posts. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at an interval of 5-12 mtrs. This safety Equipment is Certified to EN 795:2012 Type C, TS 16415:2013 The Fall Protection System Wire Rope is maintained in tension with the help of Tensioner at one end, while the other end has a swage termination on to the Eye of the End Extremity Post.
The Stainless Steel Carriage Body connects the user to the life line with the help of a Lanyard and moves smoothly without interruption along the entire length of the Horizontal Life line and also through the Intermediate Brackets, thus ensuring 100% anchorage of the user at all times.
The Fixed Life line also has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities. The Horizontal Life Line system also has an Inspection Name Plate for identification, traceability and maintenance of inspection records. One Stainless Steel Cable tie is used to fasten the System Name Plate to the structure. At time of installation, the relevant details are punched on the plate by a number punch. The revalidation dates are punched each year on the plates after inspection and revalidation. The Fixed Life System is versatile and can be installed on Walls, Floors, and Ceilings as well as on Pre-engineered Building Roofs, Fragile Roofs, Airports using the same components by using appropriate posts to install the system to the client’s receiving structure.

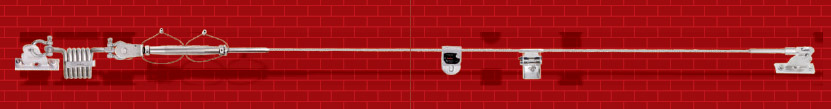

Floor/Ceiling Mounted
Horizon PN (Horizontal Anchorage Lifeline System)4000 provides permanent anchorage to max 4 users simultaneously, who has to constantly move along an elevated horizontal track. It comprises of a Stainless Steel Wire Rope grade 316 of 8 mm diameter running all along the horizontal track. It is installed at the ends using special Universal Extremity Plates. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of 8-12 mtrs. The Fixed Life line is maintained in tension with the help of Tensioner at one end, while the other end has a swage less termination on to the Universal Extremity plate.
The Stainless Steel Carriage Body connects the user to the Horizontal Life line with the help of a lanyard/ retractable block, and moves smoothly without interruption along the entire length of the Horizontal fixed line and also through the Intermediate Brackets, ensuring 100% anchorage of the user at all times. This Safety Equipment is Certified to EN 795:2012 Type C, TS 16415:2013. The Fall Protection system also has an Inspection Name Plate for identification, traceability and maintenance of inspection records. One Stainless Steel Cable Tie are used to fasten the System Name Plate to the structure. At time of installation, the relevant details are punched on the plate by a number punch. The revalidation dates are punched each year on the plates after inspection and revalidation.
The Horizontal Life line System is versatile and can be installed on Walls, Floors, Ceilings, as well as on Roof Tops, using the same components by just altering the orientation of the Intermediate Brackets & selection of suitable anchor point. Horizon PN 4000 has the unique distinction of being certified by Sira for ATEX to comply with use in potentially explosive atmosphere (as per Potentially Explosive Atmospheres Directive 2014/34/EU), and conforms to Norms EN ISO 80079-36:2016, and EN ISO 80079-37:2016. The Fixed Life Line system is certified to be intrinsically safe, hence is an ideal choice for use in Industries like Petroleum/ Petro-Chemical Plants without fear of causing explosion due to any sparking. The Fall Protection system can also be used in Truck Loading / unloading, Advertisement Bill Boards, Industrial Cranes, Oversized machines, Reactors, Turbines etc. The Fixed Life Line System is Conforms to EN 795:2012 Type C, TS 16415:2013 & Atex approved & for use in potentially explosive areas.
Components:

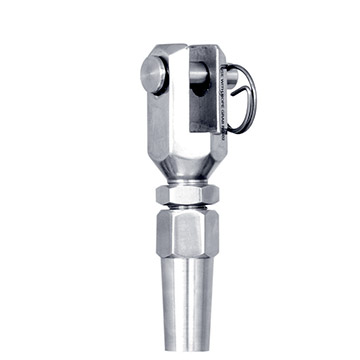

Cable Extremity

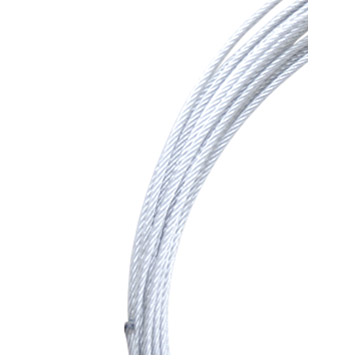

Wire Rope

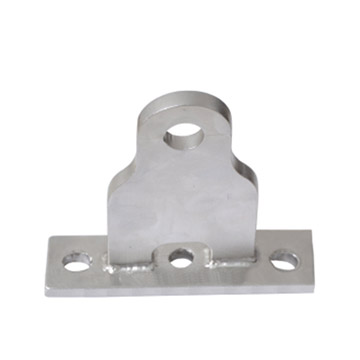

Universal Extemity Plate

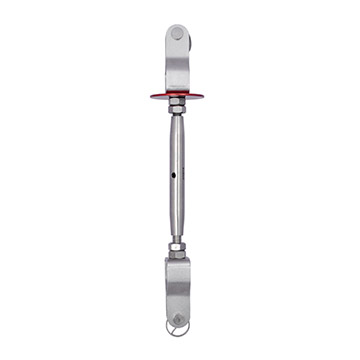

Tensioner

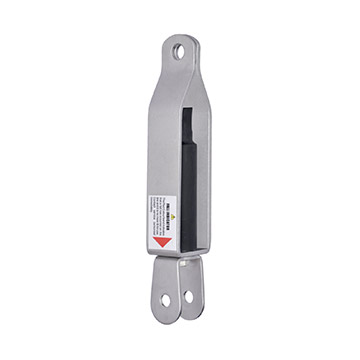

Shock Absorber

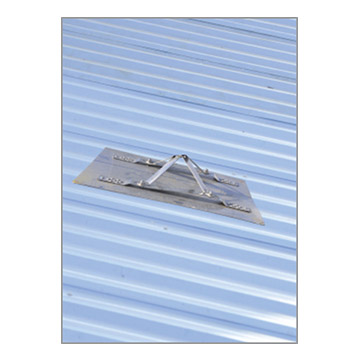

Roof Top Anchor Post Intermediate

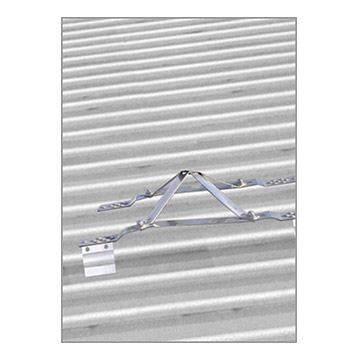

Roof Top Anchor Post Intermediate 2

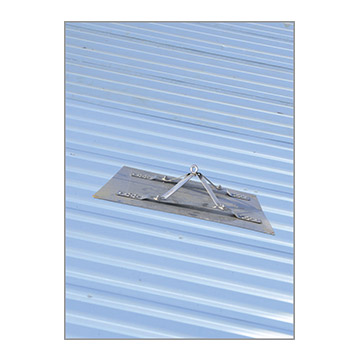

Roof Top Anchor Post Extremity

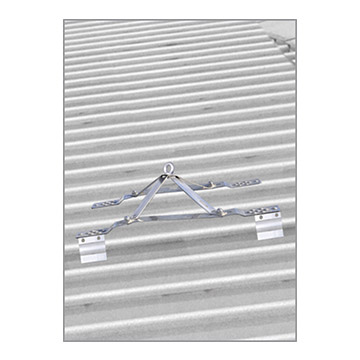

Roof Top Anchor Post Extremity 2

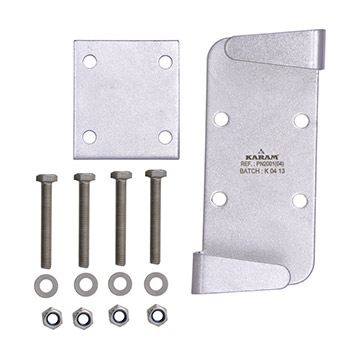

Intermediate

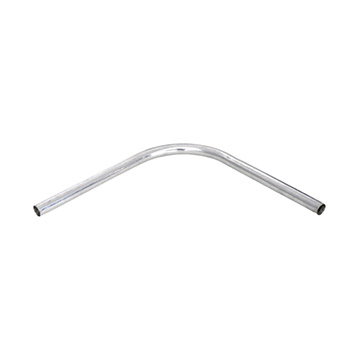

Corner Piece

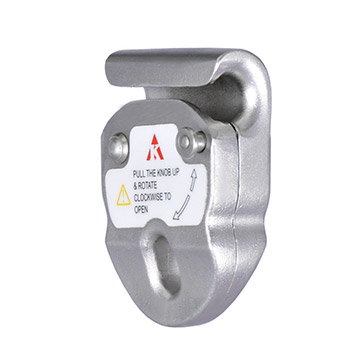

Carriage body
