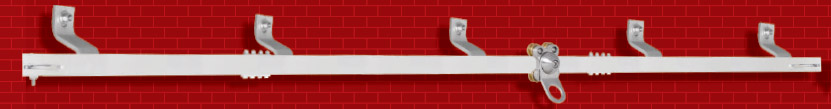

HORIZON PN 5000
This Horizontal Anchorage Rail system complies with EN 795:2012 Type D safety equipment is designed to provide safe anchorage life line system for horizontal movement while working at height. The Worker wears a Full body Harness and uses a Lanyard (or other Connector compliant with EN 354/EN 355) to connect to the eye of the Trolley, which glides along the Aluminium horizontal Rail. For overhead applications a Self-Retractable Fall Arrester can be used to provide the most effective means of fall protection System.
The Horizon PN 5000 can be fitted on to floors, wall and on ceilings using special mounting brackets. The Wall-mounting brackets can be flushed along the surface of the wall. Alternately, special mounting brackets which allow a recess between the rail and the wall may be used so as not to interrupt underlying structures like pipes and wires. The rail is available in straight as well as curved forms (for corners and bends). The specially fixed junctions between different lengths of the rail allow an extremely smooth movement of the Trolley. The Horizontal Fall Protection System also has an Inspection Name Plate for identification, traceability and maintenance of Inspection records.
Components:
![Ceiling-Mounting-Bracket](https://www.dutest.com/wp-content/uploads/2019/07/Ceiling-Mounting-Bracket.jpg)

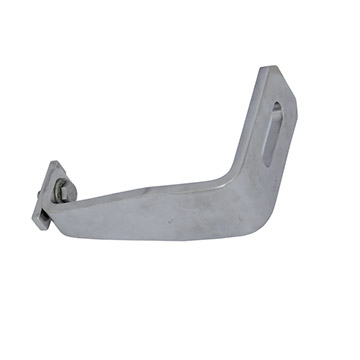

Ceiling Mounting Bracket
![Alu.-Rail-Intermeditate-1](https://www.dutest.com/wp-content/uploads/2019/07/Alu.-Rail-Intermeditate-1.jpg)

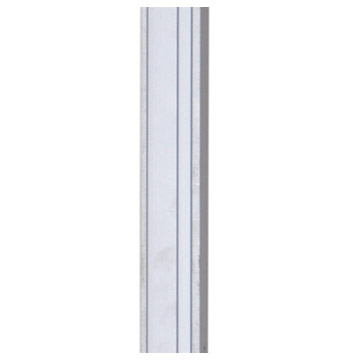

Alu. Rail Intermeditate
![Alu.-Rail-Extermity](https://www.dutest.com/wp-content/uploads/2019/07/Alu.-Rail-Extermity.jpg)

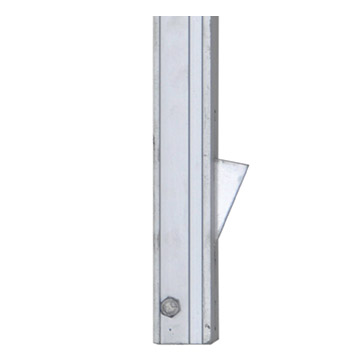

Alu. Rail Extermity
![Wall-Mounting-Bracket-with-Recess](https://www.dutest.com/wp-content/uploads/2019/07/Wall-Mounting-Bracket-with-Recess.jpg)

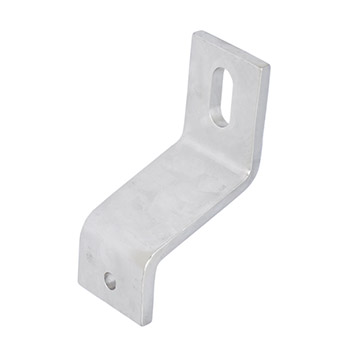

Wall Mounting Bracket with Recess
![Trolley-For-Wall](https://www.dutest.com/wp-content/uploads/2019/07/Trolley-For-Wall.jpg)

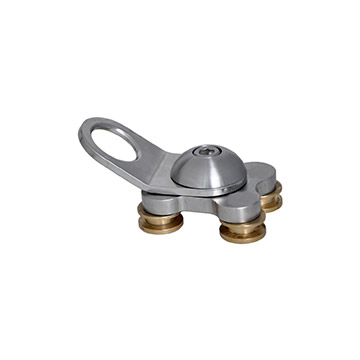

Trolley-For-Wall
![Trolley-For-Ceiling-floor](https://www.dutest.com/wp-content/uploads/2019/07/Trolley-For-Ceiling-floor.jpg)

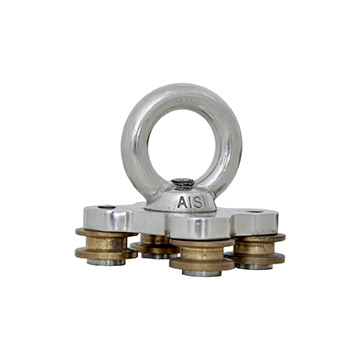

Trolley For Ceiling floor
![Mounting-Nut](https://www.dutest.com/wp-content/uploads/2019/07/Mounting-Nut.jpg)

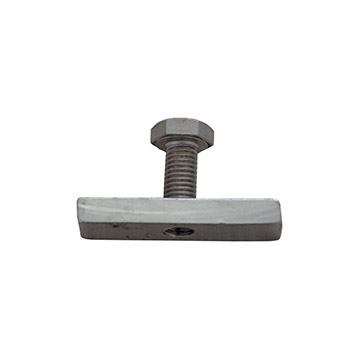

Mounting Nut
![Junction-2](https://www.dutest.com/wp-content/uploads/2019/07/Junction-2.jpg)

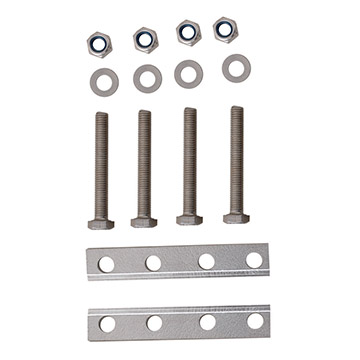

Junction
![Curved-Alu.-Rail-Outer-Wall-Mounted](https://www.dutest.com/wp-content/uploads/2019/07/Curved-Alu.-Rail-Outer-Wall-Mounted.jpg)

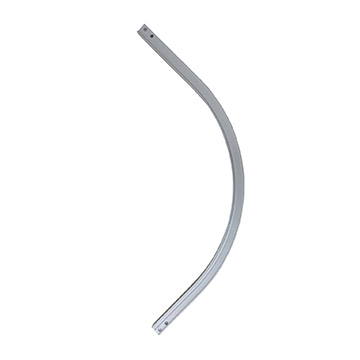

Curved Alu. Rail Outer Wall Mounted
![Curved-Alu.-Rail-Inner-Wall-Mounted](https://www.dutest.com/wp-content/uploads/2019/07/Curved-Alu.-Rail-Outer-Wall-Mounted.jpg)
Curved Alu. Rail Inner Wall Mounted
![Curved-Alu.-Rail-Ceiling-Floors.jpg](https://www.dutest.com/wp-content/uploads/2019/07/h5000-c2.jpg)

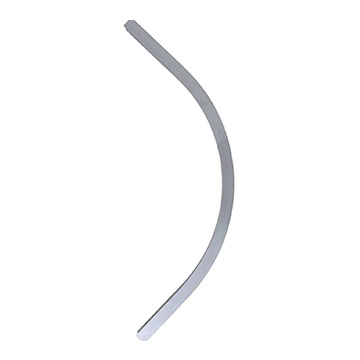

Curved Alu. Rail Ceiling Floors
![Shock-Absorber-1.jpg](https://www.dutest.com/wp-content/uploads/2019/07/Wall-Mounting-Bracket-Flush-Type.jpg)

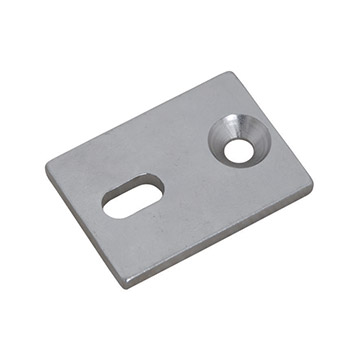

Wall Mounting Bracket Flush Type
