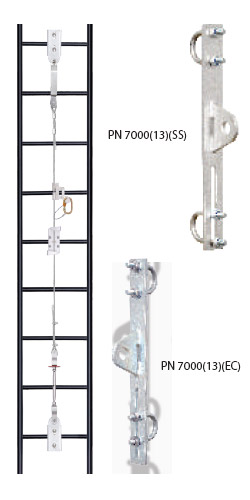

VERTEX PN 7000
This Vertical Fall Arrest Anchorage System is an integrated solution to arrest the fall of a user who has to constantly climb up & down a ladder. This Safety Equipment is Certified to EN 353-1:2014+A1:2017

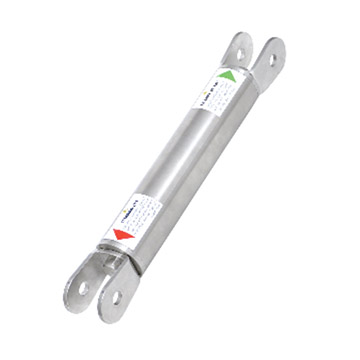

The Unique Feature of this Fall Protection system is a permanently installed Stainless Steel Shock Absorber at the top of the Vertical Life line which offers distinct advantage over the textile absorber used in other lines in term of UV degradation and resistance to harsh climate Conditions. Also the Shock Absorber is constructed of unique design that helps in easy installation of the Fixed Life Line system.

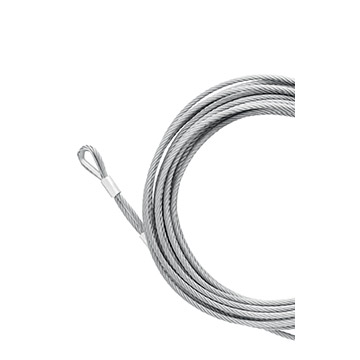

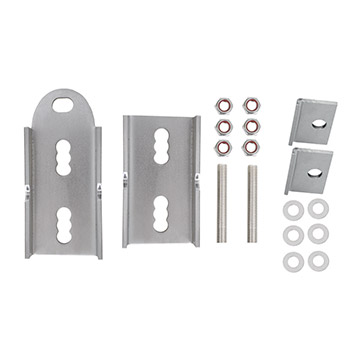

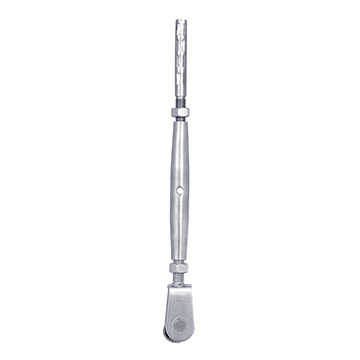

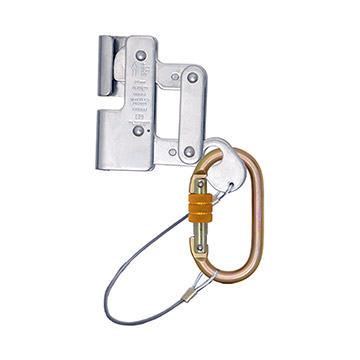

The Vertical Anchorage Life Line is made of Stainless Steel wire rope & is maintained in the rigid position by the use of 2 mounting brackets one at the top & other at the bottom. The Stainless-steel Rope Grab is directly connected to the Harness of the user without any additional lanyard. To maintain the rigidity & high tension in the Life line, a screw type mechanical tensioner is provided at the end of the Vertical anchorage line at the bottom, connecting it to the lower mounting bracket. The Tensioner is provided with a unique tension indicator which helps ensure appropriate tension is attained, and maintained in the Life line System. The Vertical Anchorage Life Line system also has an Inspection Name Plate which is installed on the first rung of the ladder for identification, traceability and maintenance of inspection records.
VERTEX PN 7000 has the following components:
Wire Rope Cap

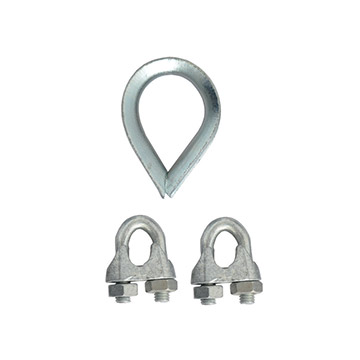

Set of 2 U bolts and 1 Thimbles
